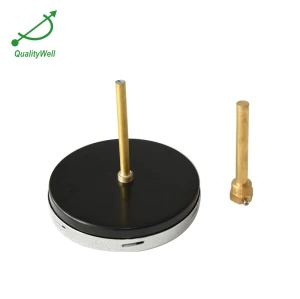

Back connection bimetal thermometer T series T400CF

Group Bimetal Thermometer
Min. Order 100 piece
Terms of Payment L/C, D/A, D/P, T/T
Update Time 2017-01-18
Item specifics
ConnectionBack Connection,with 1.5
Dial Size4”
CaseSS 304 stainless steel
LensGlass standard
BezelSS 304 stainless steel
MovementBimetallic coil imported from US
Accuracy+/-1.5% full scale standard; +/-1% full Scale Available
FillableSilicon oil or glycerine available
StandardASME B40.200-2008, EN13190:2001
FieldPipeline,surface,industrial,oil,chemical,power station,marine,etc.
Description






Type

Bimetal Thermometer

Dial Size

4", aluminum material, dish shape

Case

SS 304 stainless steel

Lens

Glass standard, Shatterproof Glass Len Is Available

Bezel

SS 304 stainless steel, hermetically sealed or detachable

Pointer

Aluminum, painted black

Movement

Bi-metallic coil imported from US

Stem OD

10mm

Stem Length

Customized

Connection

Back Connection,with 1.5" flange

Thread

No

Accuracy

+/-1.5% full scale standard; +/-1% full Scale Available

Brand

QualityWell (OEM & ODM are welcome.)

Range

From -80 C/0 C And 0 C/550 C  (customized)

Fillable

Silicon oil or glycerine available

Packaging

Shakeproof

Waterproof

IP65

Standard

ASME B40.200-2008

Field

Pipeline,surface,industrial,oil,chemical,power station,marine,etc.

Certificate

ISO9001:2008

MOQ

100 pieces

Warranty

1 year

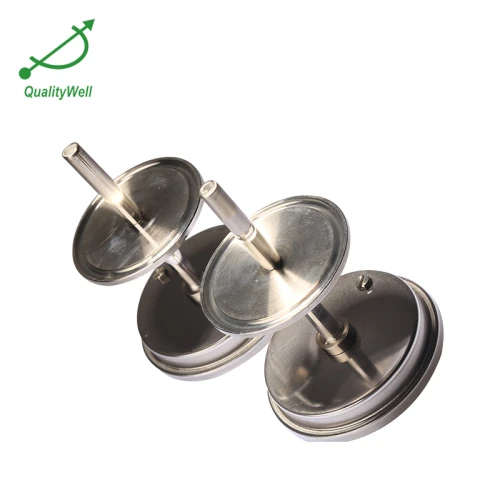

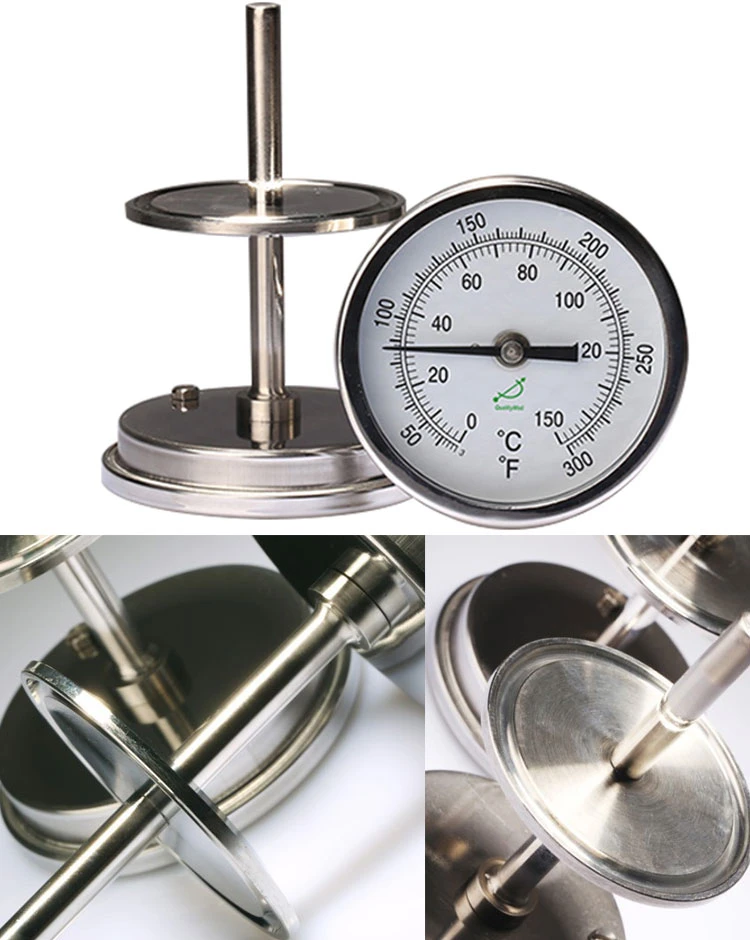

 back connection bimetal thermometer T series T400CF Flange mounted bimetal thermometer



Q:Are you able to develop customized solutions for non-standard applications?

A:Yes, we can. We have a strong professional developing team.

Q:Can I receive the dial layout before you produce the instruments?

A:Yes, we can send the dial proof for customer’s approval within 1 week.

Q:Are you able to face urgencies by offering a shorter delivery time?

A:Yes, we are a manufacturer, we can offer a shorter delivery time depends on the customer’s particular requests.

Q:Are you able to supply technical drawings and data sheets of your instruments?

A:Yes, we can supply upon customer’s request, please contact with our sales.

Q:Do you usually apply an MOQ or can you supply also small quantities?

A:Yes, different item different MOQ, except OEM item, please contact our sales for your order code.

Q:Is it necessary an expert for the installation of your instruments?

A:No, user can finish the installation easily following our specific product manual.

Q:Do you organize on site training courses in my country?

A:At present we don’t have the plan to organize the training courses in your country. But we may offer the information or the documents which you need, include the video.

Q:What is your discount policy?

A:We usually give discount according to the difference of QTY, Delivery, the payment term, and the amount and so on.

Q:What are the benefits of buying your instruments, as the Chinese products are usually considered low quality?

A:I think it is not right to consider all Chinese products are low quality. Now the quality of Made in China is better and better. You may see Made in China because the market needs it. And if you buy our products , you may find you buy the high quality with the reasonable price and we also offer the good service.

Q:Can I receive a reference list of your main customers?

A:Sorry the customers information are the company property. We are not able to give you the list. Anyway, our main customers are located in North America and Europe, some of them are very famous, and we have over 20 years of industrial experience.
