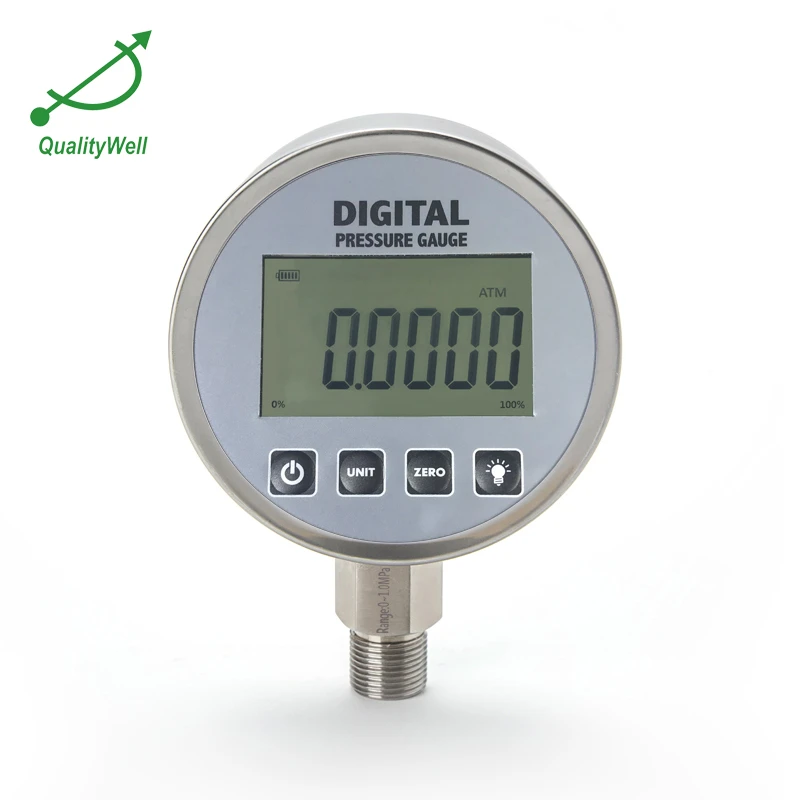

Intelligent digital pressure gauge DPG-S260

Group Pressure Gauge
Min. Order 50 piece
Terms of Payment L/C, D/P, Western Union, T/T, Paypal
Update Time 2018-04-07
Item specifics
ConnectionBottom (Vertical)
Dial Size60mm
Display Type4 digit LCD Display
Backlight ColorWhite
Range0~2...6...10...16...100...250...400...600Bar
UnitMPa, kPa, PSI, Bar, kg/cm2 (Switchable)
Accuracy±1%
Sampling Frequency5 times/second
Operation Temp-10...+50C
Overload Capacity150% of Max Range
Description






Type

Intelligent Digital Pressure Gauge

Model Number

DPG-S260

Dial Size

60mm

Display Type/span>

4 digit LCD Display

Backlight Color

White

Range

0~2...6...10...16...100...250...400...600Bar

Unit

MPa, kPa, PSI, Bar, kg/cm2 (Switchable)

Accuracy

±1%

Sampling Frequency

5 times/second

Operation Temp

-10...+50C

Overload Capacity

150% of Max Range

Housing Material

SS304

Connection Size/Material

1/2”NPT or customized SS304

Measument Medium

Gas, Liquid

Function

On/Off, zero clearing,unit switching,backlight,calibration

Battery

AAA batteryX2

Battery Life

5,000 hours, continuous use

Standard

ASME B40.100-2005

Field

Pipeline,surface,industrial,oil,chemical,power station,marine,etc.

Certificate

ISO9001

MOQ

50 pieces

 Intelligent digital pressure gauge MD-S200  Machinery and electronic industry, Pressurelaboratory,Supporting equipments of instruments, Mechanical engineeringautomation etc.

Q:Are you able to develop customized solutions for non-standard applications?

A:Yes, we can. We have a strong professional developing team.

Q:Can I receive the dial layout before you produce the instruments?

A:Yes, we can send the dial proof for customer’s approval within 1 week.

Q:Are you able to face urgencies by offering a shorter delivery time?

A:Yes, we are a manufacturer, we can offer a shorter delivery time depends on the customer’s particular requests.

Q:Are you able to supply technical drawings and data sheets of your instruments?

A:Yes, we can supply upon customer’s request, please contact with our sales.

Q:Do you usually apply an MOQ or can you supply also small quantities?

A:Yes, different item different MOQ, except OEM item, please contact our sales for your order code.

Q:Is it necessary an expert for the installation of your instruments?

A:No, user can finish the installation easily following our specific product manual.

Q:Do you organize on site training courses in my country?

A:At present we don’t have the plan to organize the training courses in your country. But we may offer the information or the documents which you need, include the video.

Q:What is your discount policy?

A:We usually give discount according to the difference of QTY, Delivery, the payment term, and the amount and so on.

Q:What are the benefits of buying your instruments, as the Chinese products are usually considered low quality?

A:I think it is not right to consider all Chinese products are low quality. Now the quality of Made in China is better and better. You may see Made in China because the market needs it. And if you buy our products , you may find you buy the high quality with the reasonable price and we also offer the good service.

Q:Can I receive a reference list of your main customers?

A:Sorry the customers information are the company property. We are not able to give you the list. Anyway, our main customers are located in North America and Europe, some of them are very famous, and we have over 20 years of industrial experience.
