Syphon – Essential Protection for Pressure Gauges

Syphon – Essential Protection for Pressure Gauges

Summary

A syphon is a critical accessory designed to protect pressure instruments such as gauges, transmitters, and diaphragm seals from the damaging effects of high-temperature steam. By acting as a cooling element, the syphon prevents direct contact between hot steam and sensitive measuring devices, ensuring safety, accuracy, and longer service life.

Syphon – Essential Protection for Pressure Gauges

Syphon – Essential Protection for Pressure Gauges


A syphon is a critical accessory designed to protect pressure instruments such as gauges, transmitters, and diaphragm seals from the damaging effects of high-temperature steam. By acting as a cooling element, the syphon prevents direct contact between hot steam and sensitive measuring devices, ensuring safety, accuracy, and longer service life.

How Does a Syphon Work?

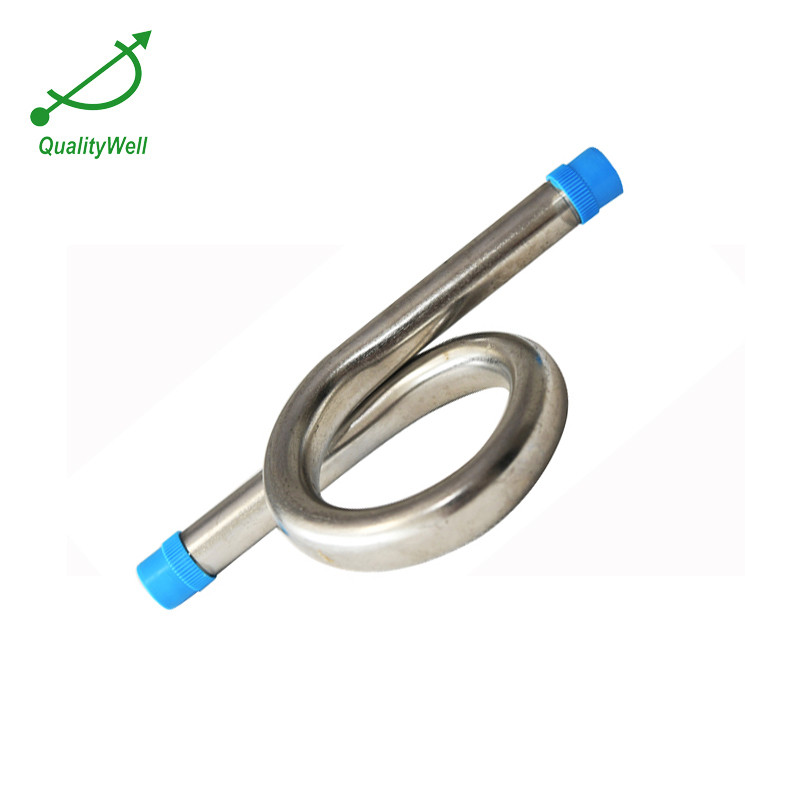

When installed between a pressure gauge and the steam pipeline, the syphon forms a looped or coiled section of tubing. This design allows steam to condense within the coil, creating a natural barrier of water that cools the pressure medium before it reaches the measuring device. As a result, the gauge or transmitter is exposed only to a lower, safer temperature, preventing overheating and damage.

Product Features

Materials Available: Carbon Steel, SS304, SS316 (suitable for both non-corrosive and corrosive environments)

Thread Options: 1/4” NPTM or 1/2” NPTM

Style: 180° coil design for compact installation and efficient cooling

Applications

Syphons are widely used in industries where steam and high-temperature gases are present. Typical applications include:

Steam pipelines and boilers

Power generation plants

Chemical and petrochemical facilities

Marine and offshore equipment

Oil and gas refineries

For any process involving temperatures above 100°F (37°C), a syphon is strongly recommended to protect valuable measuring instruments.

Advantages of Using a Syphon

Extended Instrument Life – Reduces thermal stress on pressure gauges and transmitters.

Enhanced Safety – Prevents sudden exposure of gauges to live steam.

Cost Efficiency – Minimizes maintenance costs by avoiding frequent gauge replacement.

Versatility – Suitable for different pressure ratings and environments by choosing appropriate materials (carbon steel for standard use, stainless steel for corrosive service).

Conclusion

For industries that rely on steam or high-temperature systems, the syphon is not just an accessory—it is an essential safeguard. By ensuring accurate measurements and protecting valuable equipment, syphons offer both technical reliability and economic value.
