Chemical industry bimetal thermometer

Chemical industry bimetal thermometer

It is one kind of thermometers to measuremiddle and low temperature on the spot. It could be used to directly measuretemperature of liquid, vapor and gas ranging from-80~500℃.

Chemical industry bimetal thermometer

Field: Household, Hotel, Industrial, petroleum,chemical industry, power station, Ship environment.

Two kinds of metals whose inflatedcoefficient make a great deal of difference are hard composed together, andthen the dishing twin-sheet metal comes into being. When the temperature relay arrivesat a certain given value, one upward curving force will come into being intwin-sheet metal as a result of big expanding for nether metal and smallexpanding for upper metal.

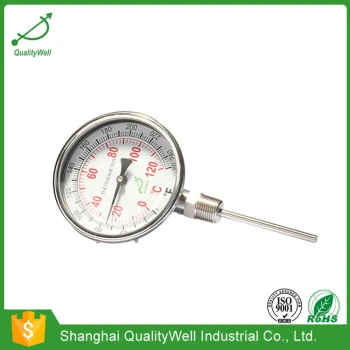

Name:Bimetal Thermometer
Model Number:I300E(WSS3B125150)
Type:Bimetal Thermometer
Connection:Bottom Connection
Bezel:screw-in Bezel
Material:All Stainless Steel 304
Thread:No thread,but other thread is okay.
Dial Size:75mm
Stem Diameter:6.35mm
Stem Length:150mm(between50-1200mm)
Temperature Range:0-100C(customized)
Lens:Glass          .
Field:Household,Hotel,Industrial,petroleum,chemical industry,power


Bimetal Thermometer  Features:

1.Directly display temperature on the spot

2. High reliability and long lifeexpectancy

3. Many structure forms to meet differentdemands
